SPECIFICATIONS

Angle of vision: 7.5 Degree

Brand Name: NoEnName_Null

Choice: yes

Color: Green,Black, Camo

Diopter adjusting range: -5~+5 DIOPTER

Exit pupil diameter: 6.8mm

Exit pupil distance: 22mm(Long eye relief for eyeglass wearers)

Eyepiece diameter: 23mm

Field of View: 396ft@1000yds

Focus Type: Detached

Hign-concerned Chemical: None

Housing: Rubber

Lens Coating Description: FMC

Magnification: 10X

Material: Metal

Model Number: BS1050C

Objective Lens Diameter: 50mm

Origin: Mainland China

Prism Description: BAK4

Prism type: Multi-coated Porro BAK-4

Type: Binoculars

Water Resistance Level: IPX7

Marine Binoculars 10x50 with Rangefinder Compass for Adults FMC Lens IPX7 Waterproof Telescope for Birdwatching Hunting Boating

About this item

【Professional Marine Binoculars】10X50 binoculars provides 50mm large objective lense and 22mm eye relief, which offer a extra large view and comfortable observation. 6.8mm exit pupil, and field of view is 396 feet at 1000 yards / 132 meters at 1000 meters. With ±5 diopter left and right diopter ring, You can adjust the distance for better viewing without glasses and for fine focusing.

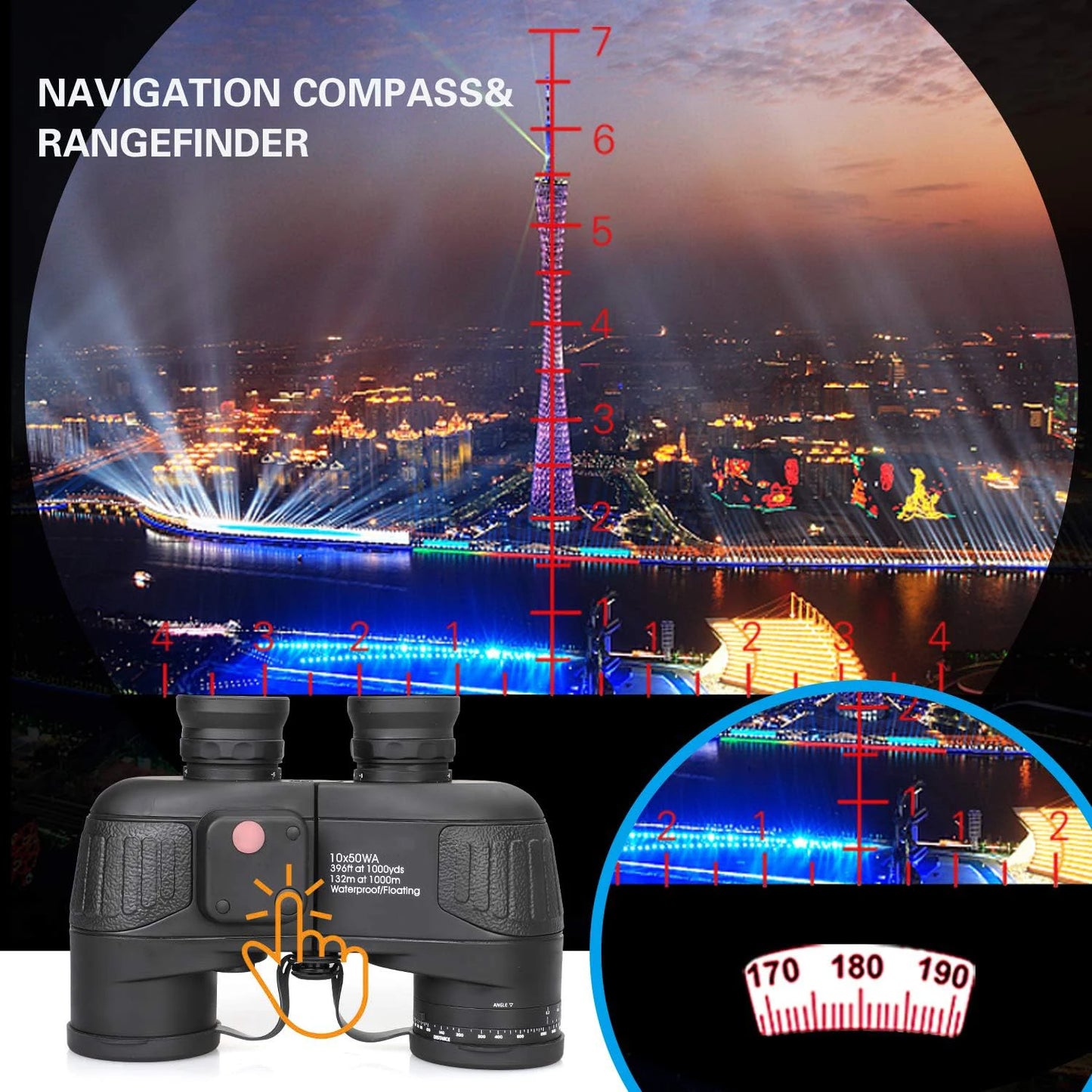

【Binoculars with Rangefinder Compass】Night vision binoculars illuminated compass built-in for direction location, with an internal rangefinder for calculate the distance and size of the object on the left eyepiece directly. The ruler and the compass illuminated by the light button, provides the maximum brightness of the image even in low light conditions(not totally dark).

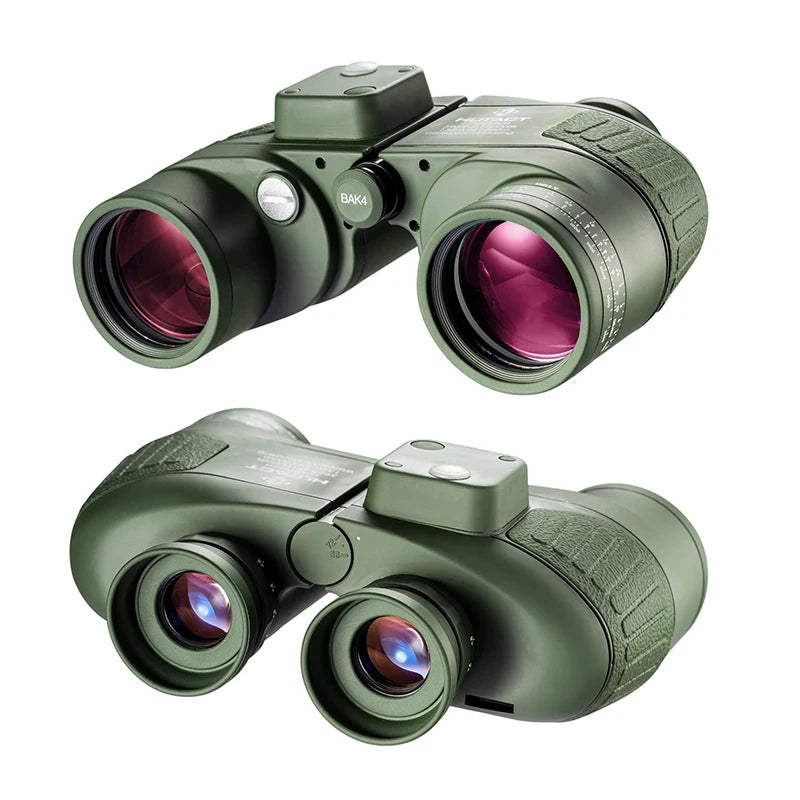

【High Quality Optic System】High refractive index BAK4 Porro Prism eliminates the stray light and improves color reproduction to 99.99%. Green FMC anti-reflective coating reduces the reflected light in the objective lens and improves light transmission, image brightness and image sharpness.

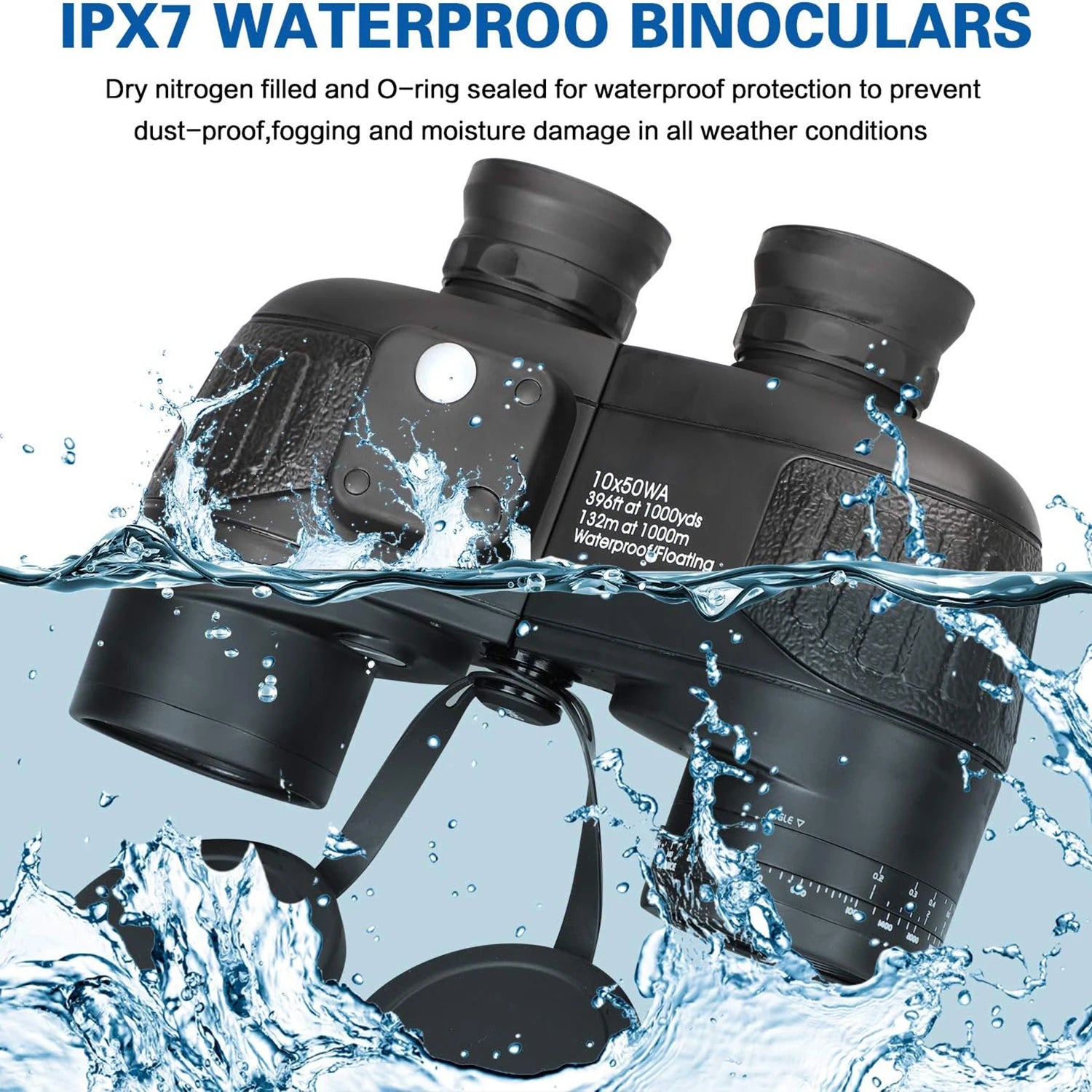

【IPX7 Waterproof Binoculars】This binocular come with Nitrogen-filled waterproof, fogproof and Anti-shake design. O-ring sealed for complete waterproof protection and float on water so no worries if dropped into the water; Dry nitrogen-purged and sealed to prevent fogging and moisture damage in all weather conditions.

【Binoculars with Harness Strap】Wearing the harness strap is the most comfortable way to carry binoculars for a long time. It can reduce the weight of the binoculars on your shoulders for more relaxed viewing. Idea for Outdoor Activities, Hunting, Bird Watching, Travel, Boating, Target Shooting.

Specifications:

Magnification: 10x Objective lens: 50mm

Field of View: 396feet at 1000 yards

Prism System: Porro

Coating:FMC Prism Glass: BaK-4

Reticle: Internal rangefinder

Compass built in:Yes

Eyecups: Fold Down

Water/Fog Proof: Yes

Tripod Adaptable: Yes

Weight : 2.1 lbs

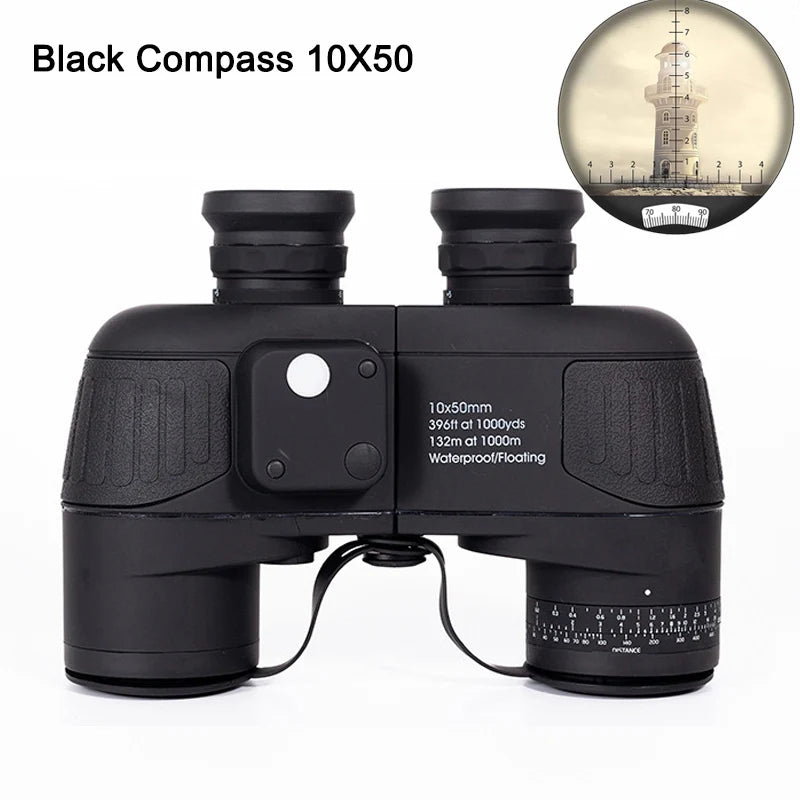

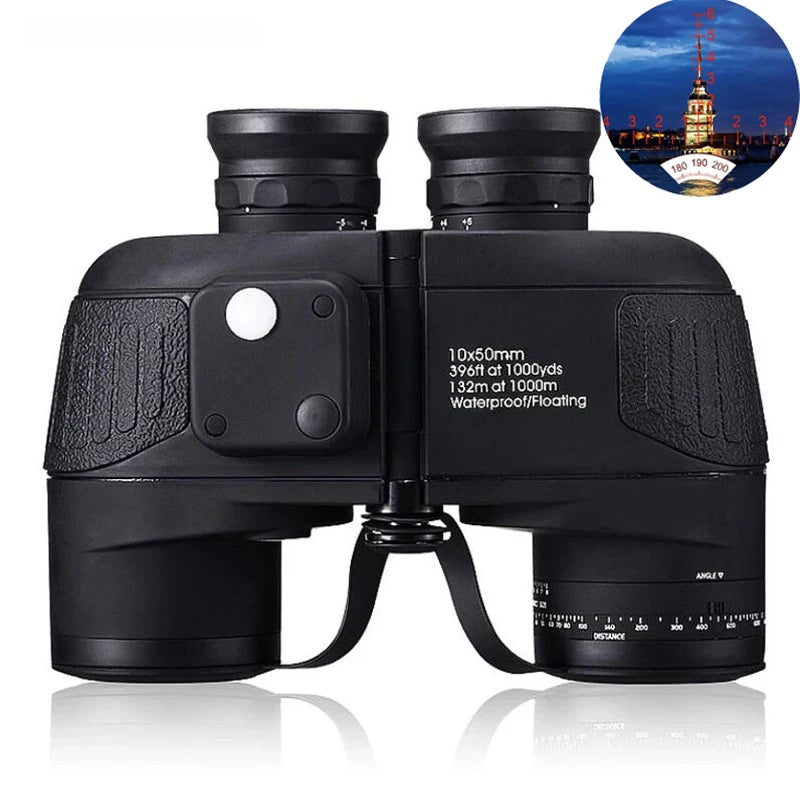

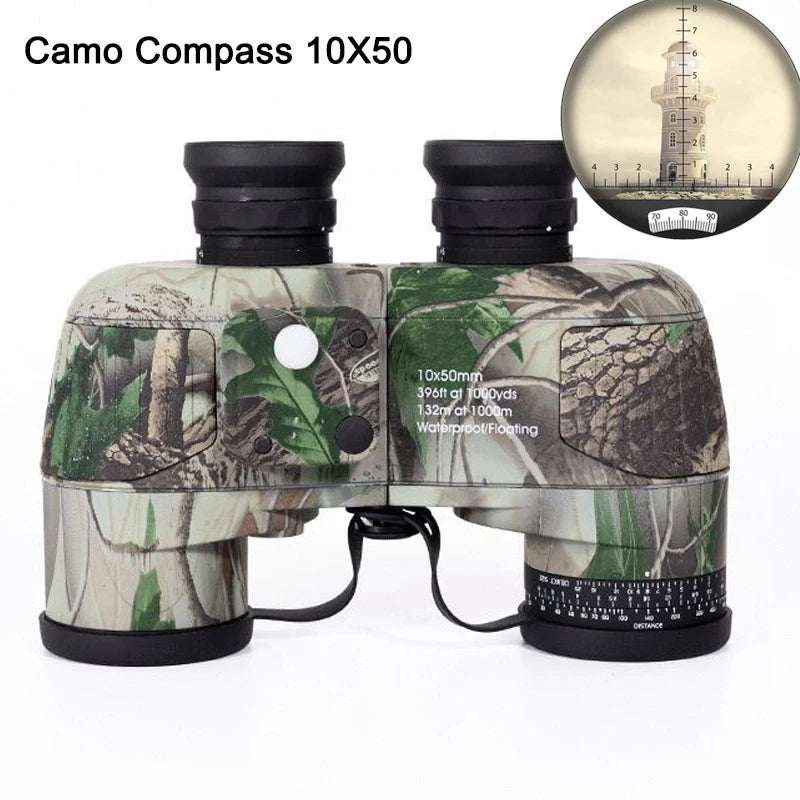

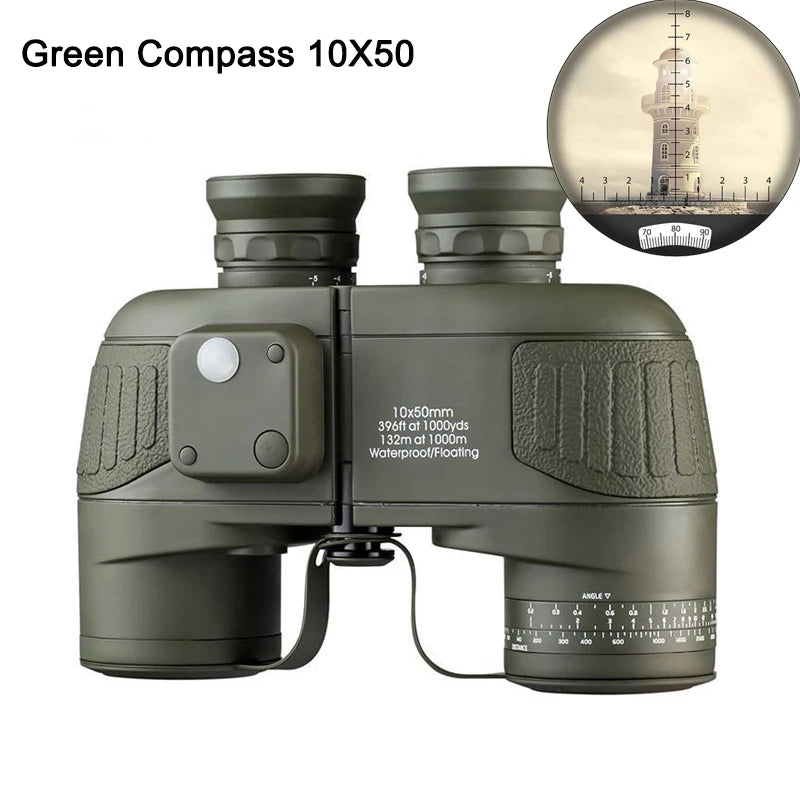

3 Colors For your choose

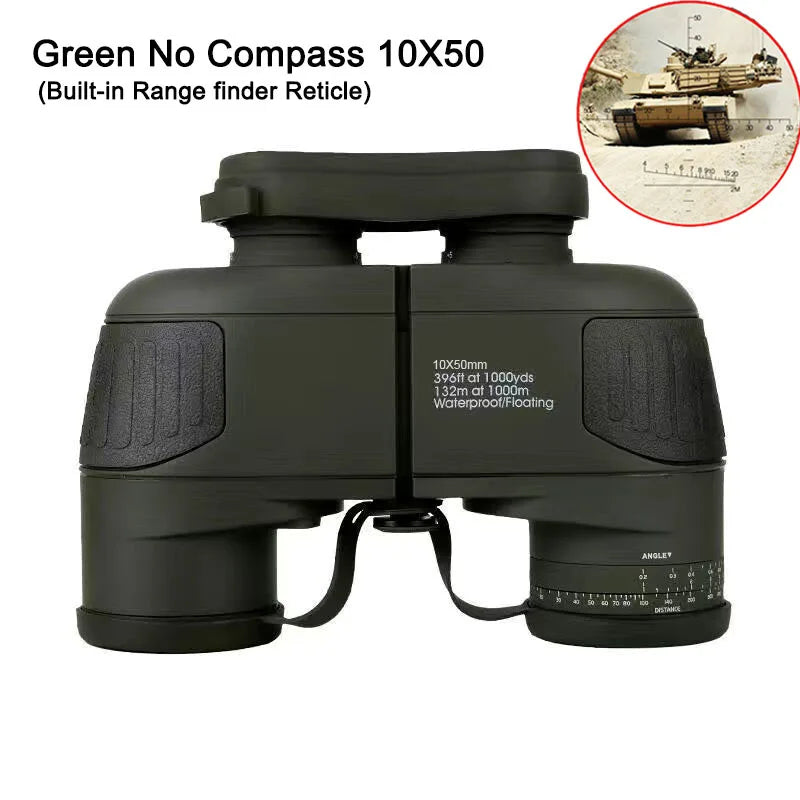

The follow is a green No compass style

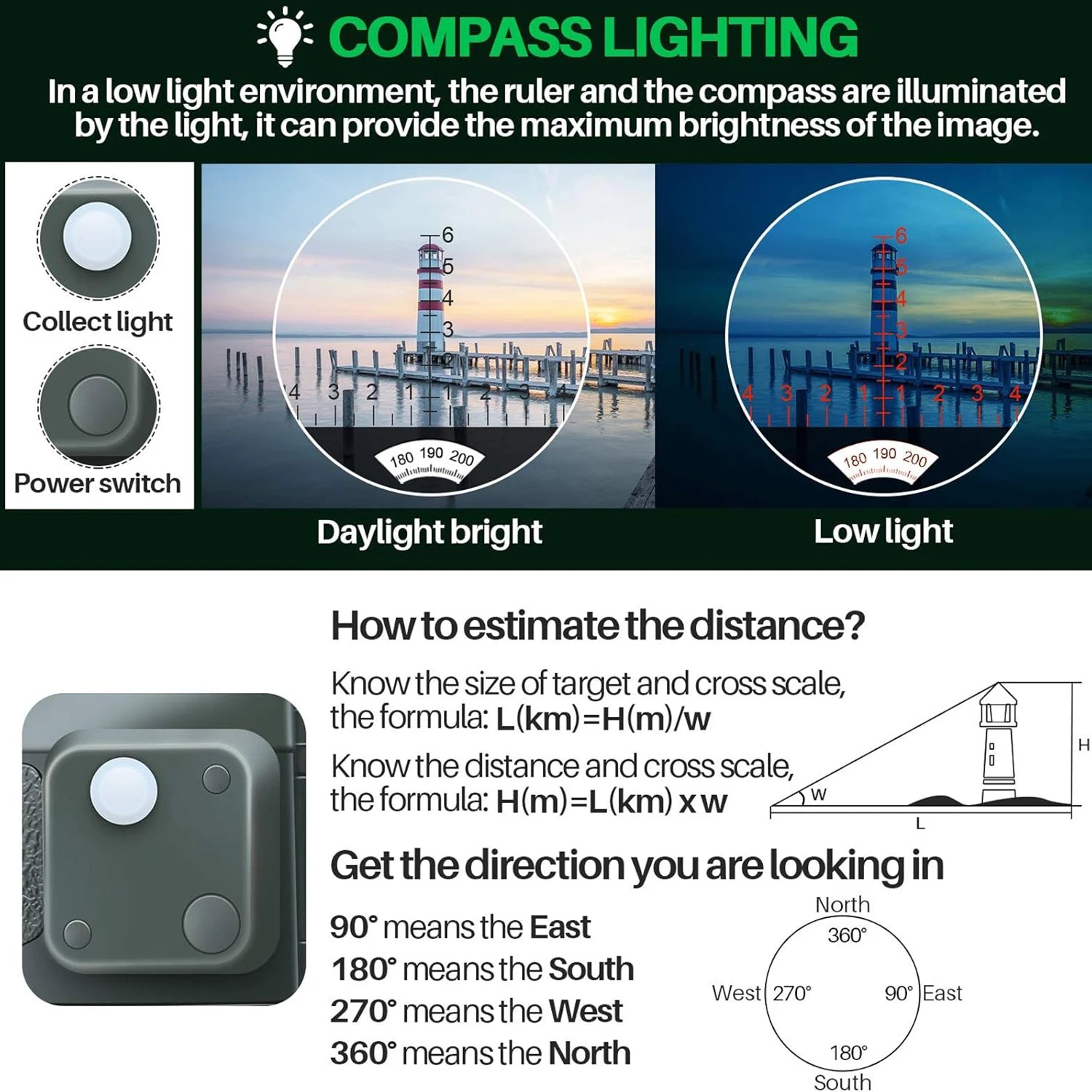

How to use the rangefinder?

Formula ranging method

(Note: 1.The actual height of the known object 2.Calculating unit:meter)

There are vertical scale and horizontal scale on the coordinates. The unit of small grid is 0.5 density, and the unit of large grid is 1 density. The calculation formula for distance measurement is:

Distance(m) = Target Height(m) * 100 / The density of the target in coordinates

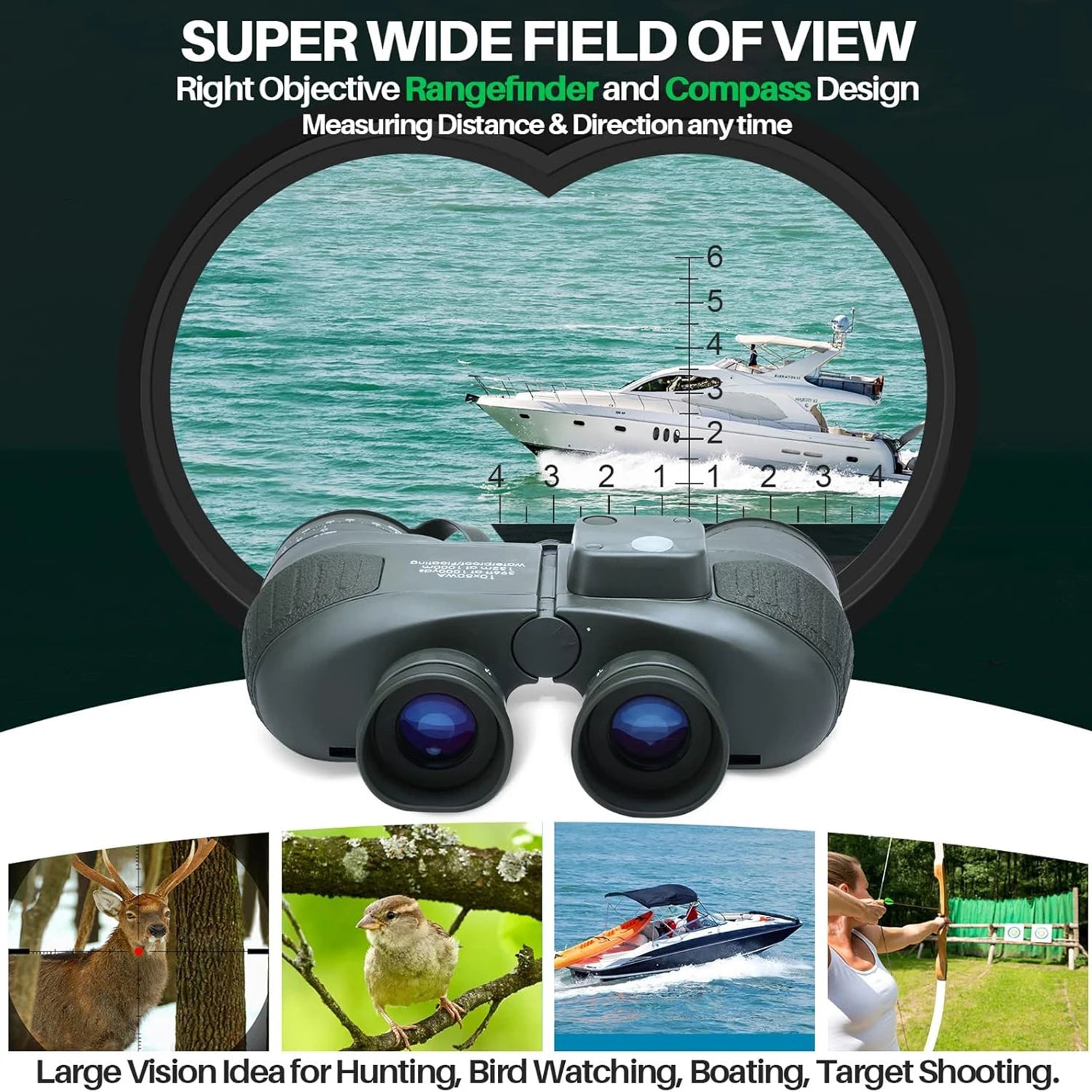

Example: As shown in the picture, the height of the sailboats is about 5 meters, and the height measured on the scale is 3. (Turn the focusing wheel until the object can be seen cleary.)

5m * 100 /3 = 167m

2. Rangefinder measurement method

(Note: 1.The actual height of the known object 2.Calculating unit:meter)

1.Turn the focusing wheel until the object can be seen clearly.

2.Coordinate the horizontal baseline of the coordinates with the bottom line of the object, and measure the height and density of the object.(as the picture shows)

3.Rotate the measuring circle, align the arrow at the position where the density scale is 3, and the observation distance is about 160 meters according to the object's height of 5 meters.

Package Includes

1 x Binoculars

1 x Carrying Bag

1 x Harness Strap

1 x Eyepiece Cap

2 x Objective Lens Cap

2 x LR936/AG,cell batteries(Including the Binoculars)

1 x Instruction

1 x Color Box
